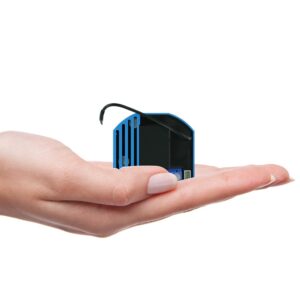

With the Qubino Flush Double Relay, existing electrical installations (e.g. lighting, airing systems…) can be integrated into a Z-Wave network. Thus, the connected device can still be controlled with the existing wall switch, but – thanks to Z-Wave – also via remote control, smartphone or sensor-controlled automation.
The currently thinnest Z-Wave radio module is placed in a wall box right behind the normal switch. The switch is no longer directly connected to the loads but acts as input device for the Qubino insert that is controlling the loads. The switch only sends control signal to the insert which controls both loads then again. The Qubino Flush Double Relay works with all switch design. You can use a momentary or a toggle switch. It’s recommended to use wall boxes with 65mm depth. But smaller boxes with only 45mm depth can be used also if there is enough space behind the switch. The available space depends on the size of the traditional switch, the dimensions of the wall box and the amount of additional cabling placed in this box.
- External Temperature Sensor (GOA_ZMNHEA1)
- Thinnest Z-Wave radio module for wall box installation
- Controls two independent loads
- Energy metering function
- Add digital temperature sensor (optional)
- Max. Load: 2x 4A / 920W, 230VAC; 2x 4A / 96W, 24VDC
- Wireless Technology: Z-Wave Plus
